Low-Voltage DC Drive · Enclosed

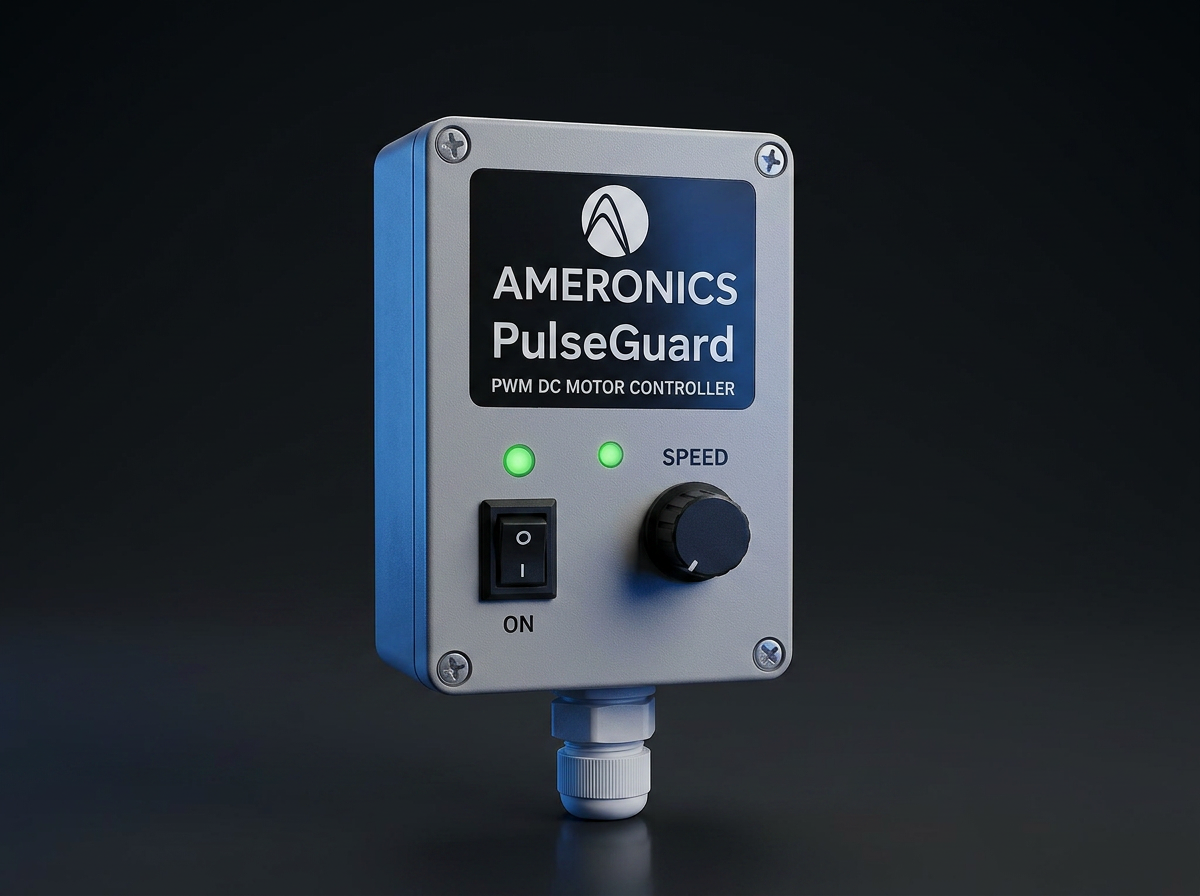

PulseGuard
Enclosed PWM DC Drive
Fully enclosed PWM DC motor controller for 12 V and 24 V permanent-magnet motors. NEMA 1 housing for harsh industrial and mobile environments.
- Sealed NEMA 1 industrial enclosure
- High-efficiency PWM speed control
- 0–10 V analog input for external speed adjustment
- OEM branding & custom labeling available
Technical Specifications
PULSEGUARD · DATASHEET
- Input Voltage
- 12 / 24 V DC
- Output Voltage
- 0–12 / 0–24 V DC
- Current Range
- 10 – 60 Amps
- Technology
- PWM
- Operation Mode
- Speed Control (open-loop)
- Control Input
- 0–10 V analog
- Isolation
- Non-isolated
- Enclosure
- NEMA 1 Box
- Compliance
- RoHS compliant
Typical Applications
- Off-road & mobile vehicles
- Material handling
- Agricultural equipment
- Renewable energy systems
Model Lineup
PULSEGUARD · ORDERING GUIDE
| Model | Input | Output | Current | 90 VDC | 180 VDC | Tech | Enclosure |
|---|---|---|---|---|---|---|---|
| 10A | 12 / 24 VDC | 0–12 / 0–24 VDC | 10 A | PWM | NEMA 1 Box | ||
| 16A | 12 / 24 VDC | 0–12 / 0–24 VDC | 16 A | PWM | NEMA 1 Box | ||
| 40A | 12 / 24 VDC | 0–12 / 0–24 VDC | 40 A | PWM | NEMA 1 Box | ||
| 60A | 12 / 24 VDC | 0–12 / 0–24 VDC | 60 A | PWM | NEMA 1 Box |
