RedVolt Drive
Workhorse SCR DC Drive
Our flagship SCR DC motor drive. Field-proven, rugged, and tuned for continuous heavy-duty operation in the toughest industrial environments.

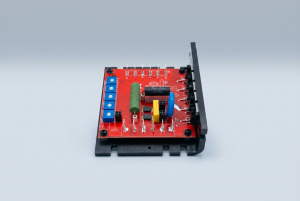

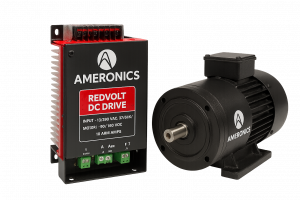

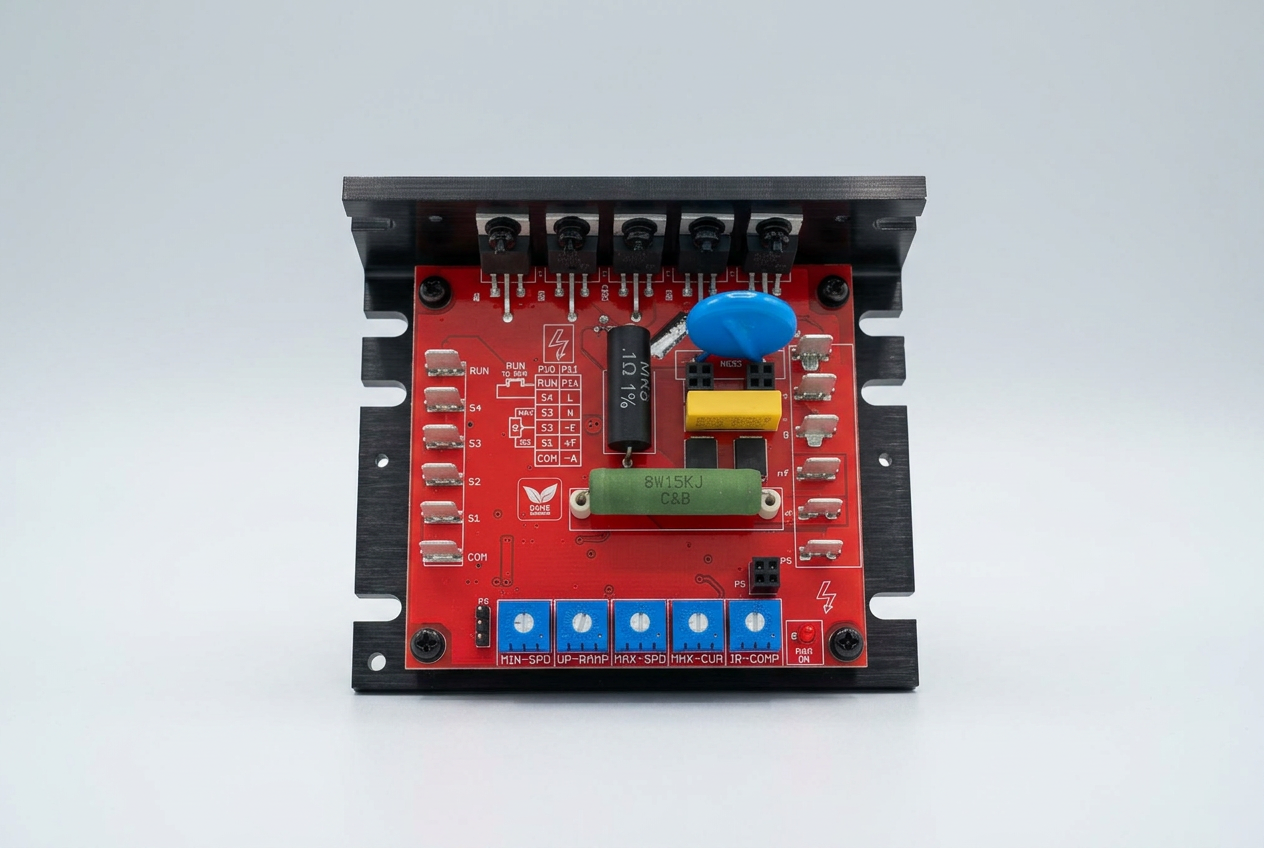

The RedVolt Drive is Ameronics' flagship open-chassis SCR DC motor controller — engineered in the USA for continuous heavy-duty operation. Built around proven phase-controlled rectification, it delivers smooth speed regulation across the full 0–100 / 0–200 VDC armature range and supports both armature and tachometer feedback for tight, repeatable performance. Adjustable IR compensation, an integrated field supply for shunt-wound motors, isolated signal inputs, and diagnostic LEDs make installation, tuning, and service straightforward. The RedVolt is the controller our customers come back to — decade after decade — for conveyors, mixers, extruders, machine tools, and pump and fan drives.
- SCR phase-controlled rectification
- Adjustable IR compensation for tight regulation
- Integrated field supply for shunt-wound motors
- Diagnostic LEDs & isolated signal inputs
- AC Input
- 115 / 230 VAC, single-phase
- DC Output (Armature)
- 0–100 / 0–200 V DC
- Current Range
- 1.5 – 15 Amps
- Power Range
- 1/8 – 3 HP
- Technology
- SCR phase-controlled
- Operation Mode
- TACO & Armature feedback
- Communication
- None
- Isolation
- Non-isolated
- Enclosure
- Open chassis
- Quadrants
- 1Q (non-regenerative)
- Conveyors
- Mixers & extruders
- Machine tools
- Pump & fan drives
| Model | Input | Output | Current | 90 VDC | 180 VDC | Tech | Enclosure |
|---|---|---|---|---|---|---|---|
| 1P-1.5A | 115 / 230 VAC | 0–100 / 0–200 VDC | 1.5 A | 1/8 HP | 1/4 HP | SCR | Chassis |
| 1P-3A | 115 / 230 VAC | 0–100 / 0–200 VDC | 3 A | 1/3 HP | 2/3 HP | SCR | Chassis |
| 1P-5A | 115 / 230 VAC | 0–100 / 0–200 VDC | 5 A | 1/2 HP | 1 HP | SCR | Chassis |
| 1P-10A | 115 / 230 VAC | 0–100 / 0–200 VDC | 10 A | 1 HP | 2 HP | SCR | Chassis |
| 1P-15A | 115 / 230 VAC | 0–100 / 0–200 VDC | 15 A | 1.5 HP | 3 HP | SCR | Chassis |
