DC Drive Controller · Non-Regenerative · Enclosed

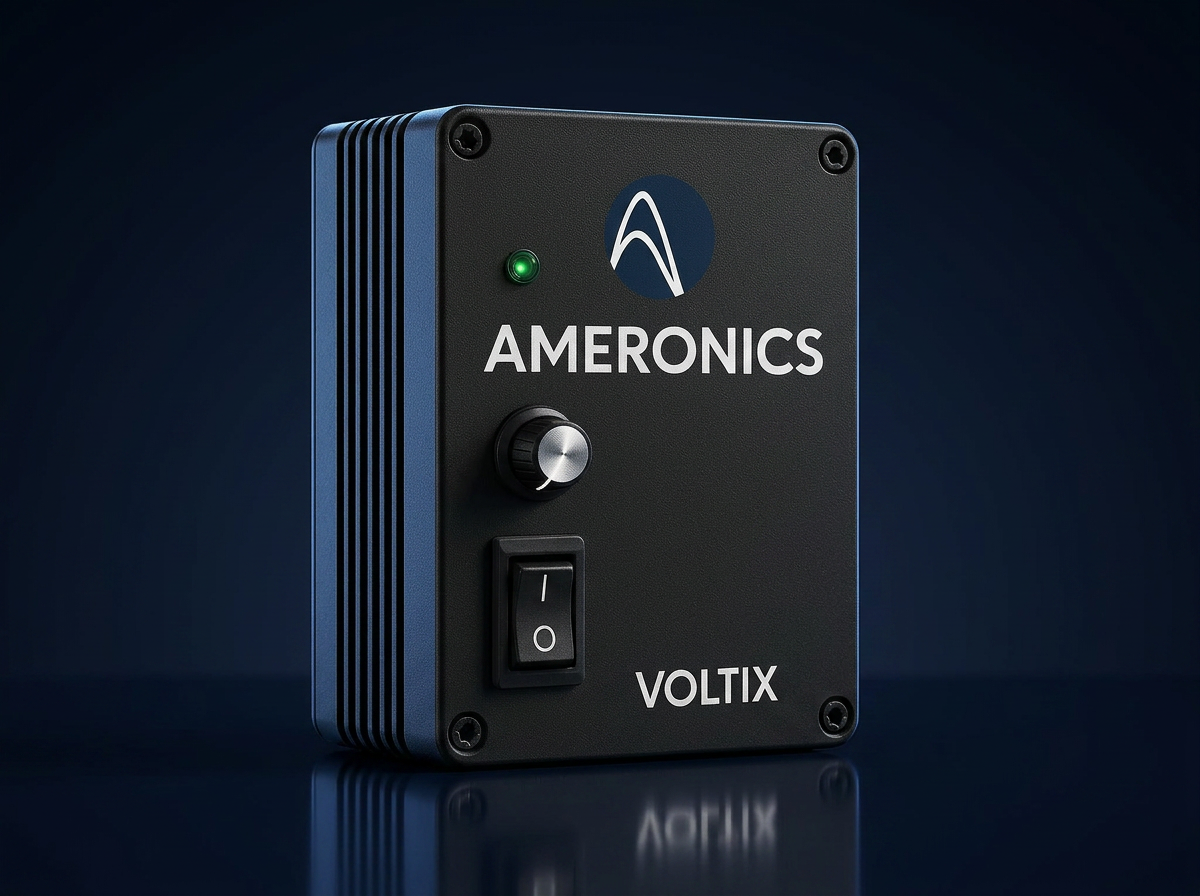

Voltix Drive
Enclosed SCR DC Drive
The enclosed sibling of the RedVolt — same field-proven SCR DC motor drive, packaged in a rugged NEMA 1 industrial housing for plug-and-play installation.
The Voltix Drive is the enclosed counterpart of the RedVolt — same field-proven SCR DC motor drive, factory-tuned for tight regulation, but housed in a sealed NEMA 1 industrial enclosure for plug-and-play installation in workshop, factory, and process-line environments.
- SCR phase-controlled rectification
- Adjustable IR compensation for tight regulation
- Integrated field supply for shunt-wound motors
- Diagnostic LEDs & isolated signal inputs
Technical Specifications
VOLTIX DRIVE · DATASHEET
- AC Input
- 115 / 230 VAC, single-phase
- DC Output (Armature)
- 0–100 / 0–200 V DC
- Current Range
- 1.5 – 15 Amps
- Power Range
- 1/8 – 3 HP
- Technology
- SCR phase-controlled
- Operation Mode
- TACO & Armature feedback
- Communication
- None
- Isolation
- Non-isolated
- Enclosure
- NEMA 1 Box
- Quadrants
- 1Q (non-regenerative)
Typical Applications
- Conveyors
- Mixers & extruders
- Machine tools
- Pump & fan drives
Model Lineup
VOLTIX DRIVE · ORDERING GUIDE
| Model | Input | Output | Current | 90 VDC | 180 VDC | Tech | Enclosure |
|---|---|---|---|---|---|---|---|
| 1P-1.5A | 115 / 230 VAC | 0–100 / 0–200 VDC | 1.5 A | 1/8 HP | 1/4 HP | SCR | NEMA 1 Box |
| 1P-3A | 115 / 230 VAC | 0–100 / 0–200 VDC | 3 A | 1/3 HP | 2/3 HP | SCR | NEMA 1 Box |
| 1P-5A | 115 / 230 VAC | 0–100 / 0–200 VDC | 5 A | 1/2 HP | 1 HP | SCR | NEMA 1 Box |
| 1P-10A | 115 / 230 VAC | 0–100 / 0–200 VDC | 10 A | 1 HP | 2 HP | SCR | NEMA 1 Box |
| 1P-15A | 115 / 230 VAC | 0–100 / 0–200 VDC | 15 A | 1.5 HP | 3 HP | SCR | NEMA 1 Box |
Need a custom build?
Ready to spec the Voltix Drive?
Talk to our engineering team about your motor, load profile, and integration requirements.
